CRB
- Up to 300,000 BTU, multiple burners
- Heavy-duty stainless steel build
- Optional grates, lava rock, splash guards
- Countertop or floor model options
- Includes gas pressure regulator
Specs
{acf_specs}
Body: 16 Gauge #304 Stainless Steel, Fully Welded
Fire Box: 14 Gauge #304 Stainless Steel, Welded to Body
Front: Removable 18 Gauge #304 Stainless Steel Panel
Top Grates: Heavy Duty Cast Iron w/ “Grease Flow Channels”
Radiants: Heavy Duty Cast Iron
Burners: 12,000 BTU Stainless Steel
Drip Pan: 18 Gauge #304 Stainless Steel
Valves: Heavy Duty Brass
Gas Inlet: 3⁄4 NPT
Gas Pressure: 4.0” Natural, 11.0” Propane (Inches Water Column)
Legs (Floor Model): #304 Stainless Steel tubing with Stainless Steel undershelf and adjustable feet or casters.
Order Parts
Place OrderPlace Order
#

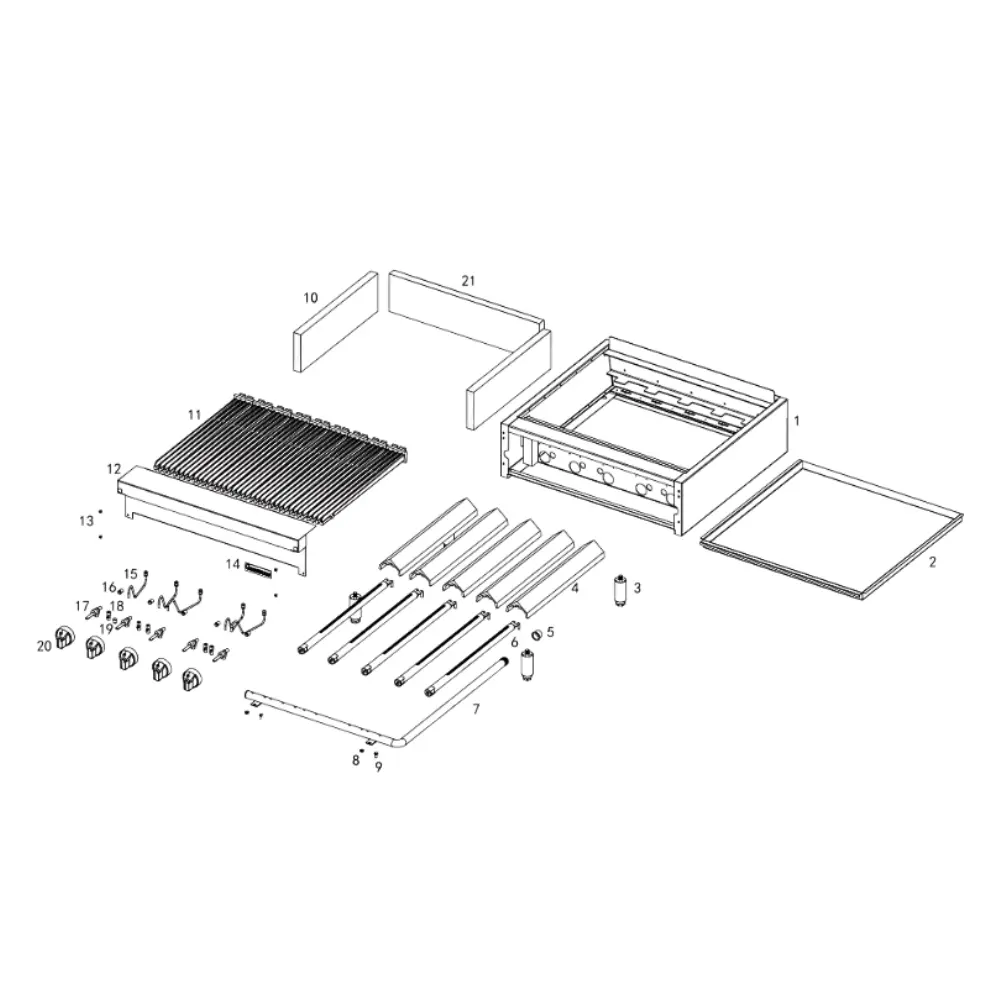

Part Number
Part Name
Add/Remove
1
30-400-DS
body
2
30-425-DS
front panel
3
30-450-Ds
grease pan
4
30-100-00 4
bar top grate (3x22.5)
4a
30-100-01
**modified top grate (6x22.5)
5
30-125-00
cast iron radiant
6
30-150-00
tubular burner
7
30-675-00
air shutter
8
30-200-01
orifice hood (nat gas)
8a
30-200-02
orifice hood (LP)
9
30-350-00
pilot stem & tip
10
30-300-DS
gas manifold pipe
11
00-225-00
pilot valve
12
00-250-00
manual control valve
13
00-500-00
chrome knob
13a
15-251-02
**brushed s/s knob
14
00-275-01
pressure regulator (nat gas)
14a
00-275-02
pressure regulator (LP)
