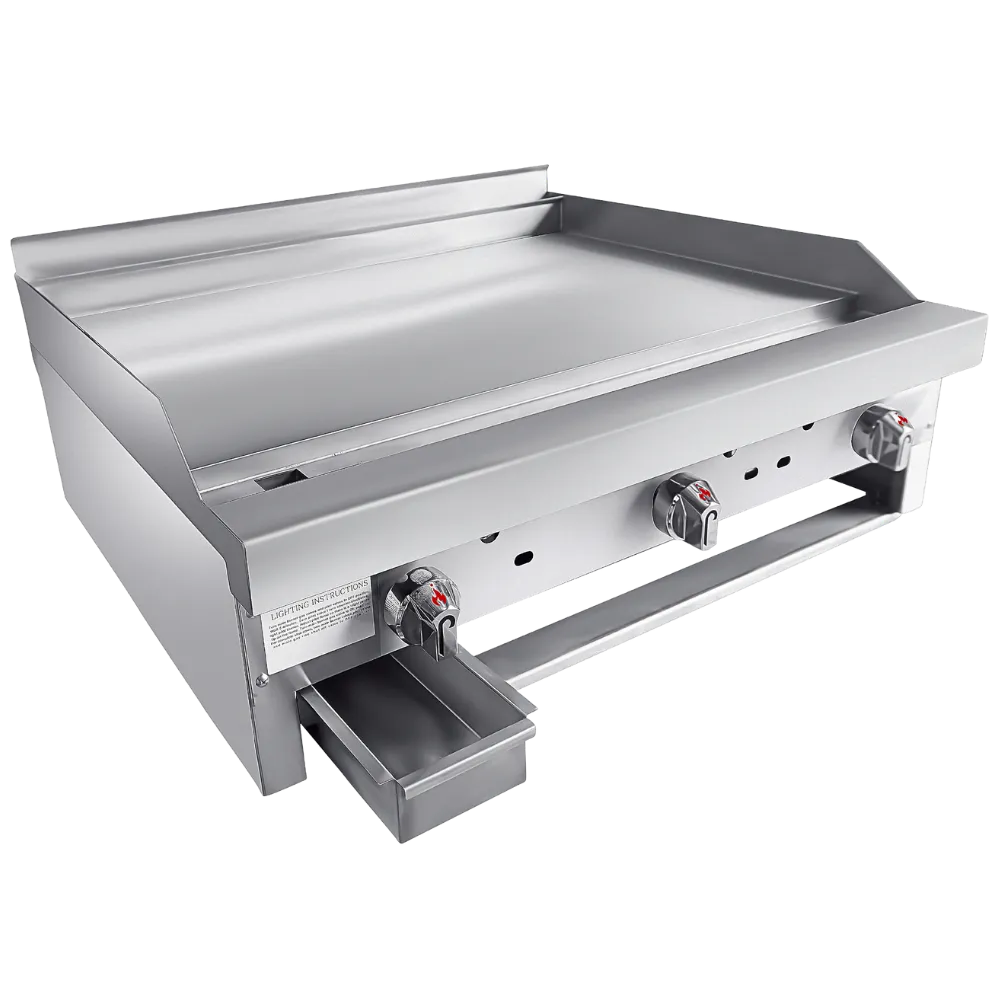

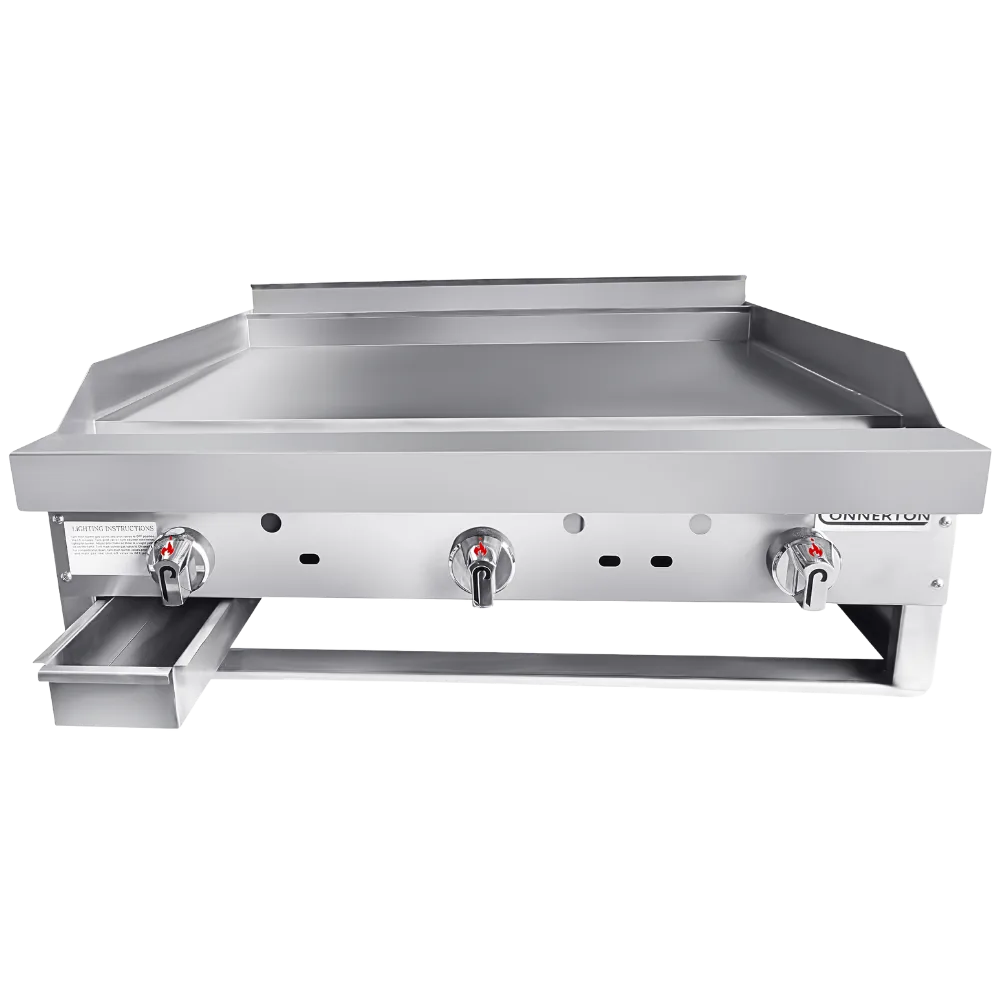

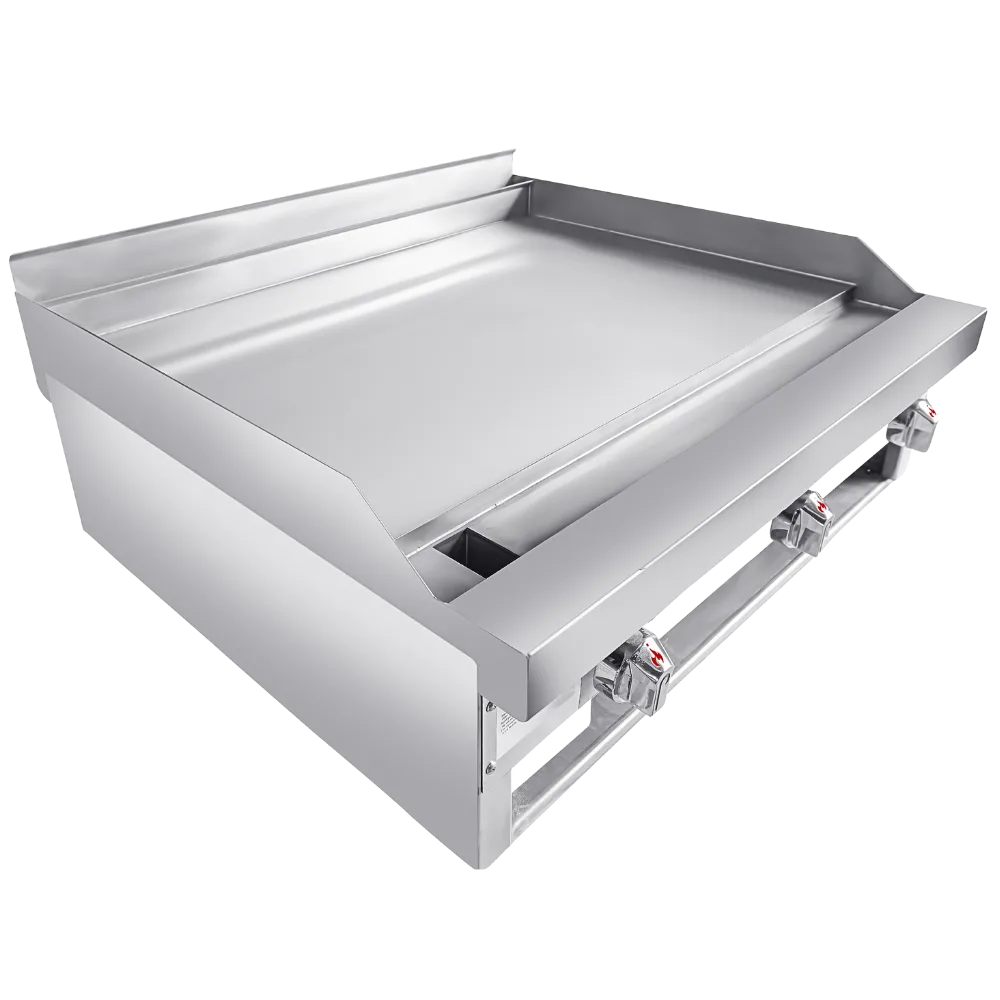

CG-M

  • Manual griddle with fully welded #304 stainless steel body
  • 1” polished steel plate for efficient cooking
  • U-shaped tubular aluminized steel burners (22,000 BTU each)
  • Heavy-duty brass valves and ¾” NPT gas inlet
  • Adjustable stainless steel legs or optional castors for floor models
  • Available options: grooved or chromed plate, stainless steel shelf, 4” legs, and 24” deep plate
Spec SheetManual

Specs

{acf_specs}

Body: 16 Gauge #304 Stainless Steel, Fully Welded

Fire Box: 16 Gauge #304 Stainless Steel, Welded to Body

Front: Removable 18 Gauge #304 Stainless Steel Panel

Plate: 1” Highly polished steel plate

Gutter: 14 Gauge #304 Stainless Steel

Splash: 4.0” Natural, 11.0” Propane (Inches Water Column)

Burners: 22,000 BTU Tubular Aluminized Steel, U-Shaped

Drip Pan: 18 Gauge #304 Stainless Steel

Valves: Heavy Duty Brass

Gas Inlet: 3⁄4 NPT

Gas Pressure: 4.0” Natural, 11.0” Propane (Inches Water Column)

Legs (Floor Model): #304 Stainless Steel tubing with Stainless Steel undershelf and adjustable feet or castors

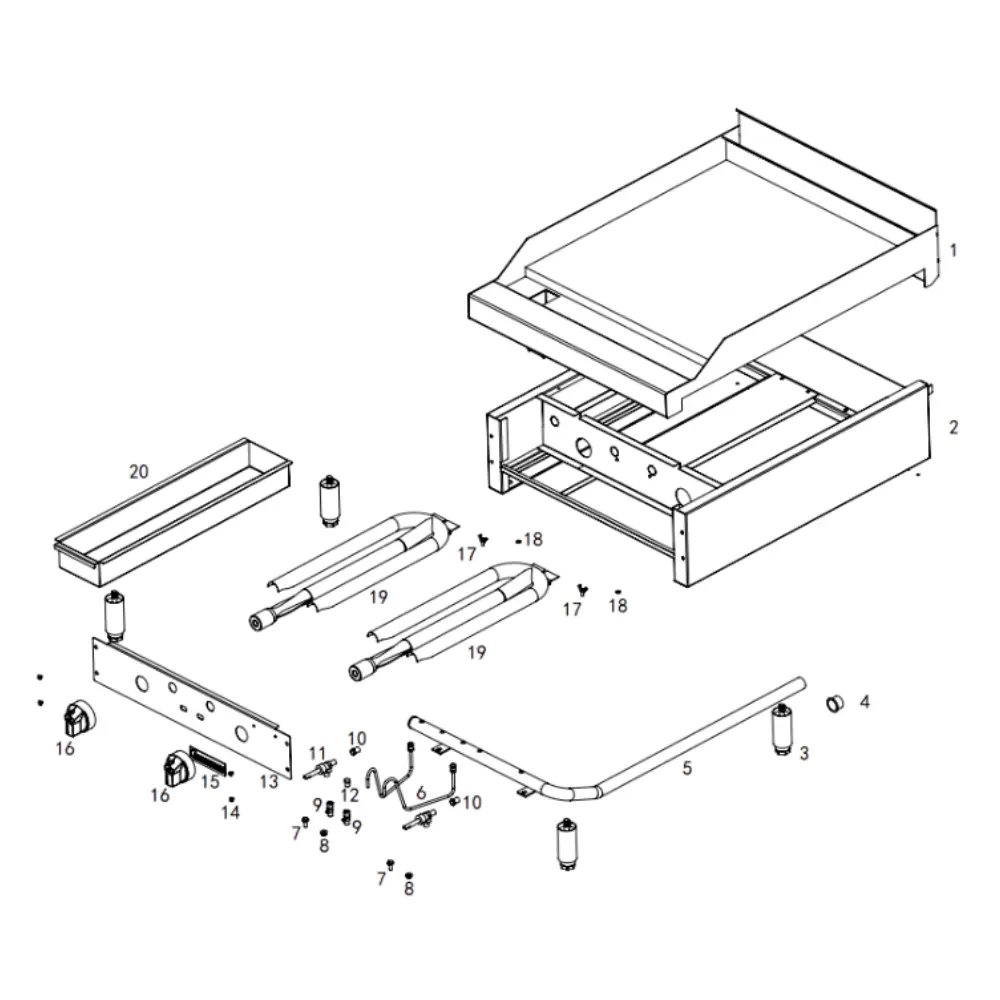

Parts Diagram

Click to expand the image

Order Parts

Place Order
#
Part Number
Part Name
Add/Remove
1
10-475-DS
griddle plate
Add To Order List
2
10-400-DS
body
Add To Order List
3
10-425-DS
front panel
Add To Order List
4
10-450-DS
grease drawer
Add To Order List
5
10-300-DS
gas manifold pipe
Add To Order List
6
10-200-01
orifice hood (nat gas)
Add To Order List
6a
10-200-02
orifice hood (LP)
Add To Order List
7
10-675-00
air shutter
Add To Order List
8
10-150-00
burner
Add To Order List
9
10-350-00
pilot stem & tip
Add To Order List
10
00-225-00
pilot valve
Add To Order List
11
00-250-00
manual control valve
Add To Order List
12
00-500-00
chrome knob
Add To Order List
12a
15-251-02
**brushed s/s knob
Add To Order List
13
00-275-01
pressure regulator (nat gas)
Add To Order List
13a
00-275-02
pressure regulator (LP)
Add To Order List
