Kabob Series
- Welded #304 Stainless Steel construction for durability
- 25,000 BTU burners every 6 inches for efficient heating
- 19” deep cooking surface for ample cooking space
- Heavy-duty grates for increased production capacity
- Includes a grease pan for water as needed
Specs
{acf_specs}
1/2” Steel Rolling Rod Grates
4” Removable Stainless Steel Splash, Sides and Back
Stainless Steel Plate Shelf
4” Legs Accessory
Floor Model Accessory
Skewer bracket available

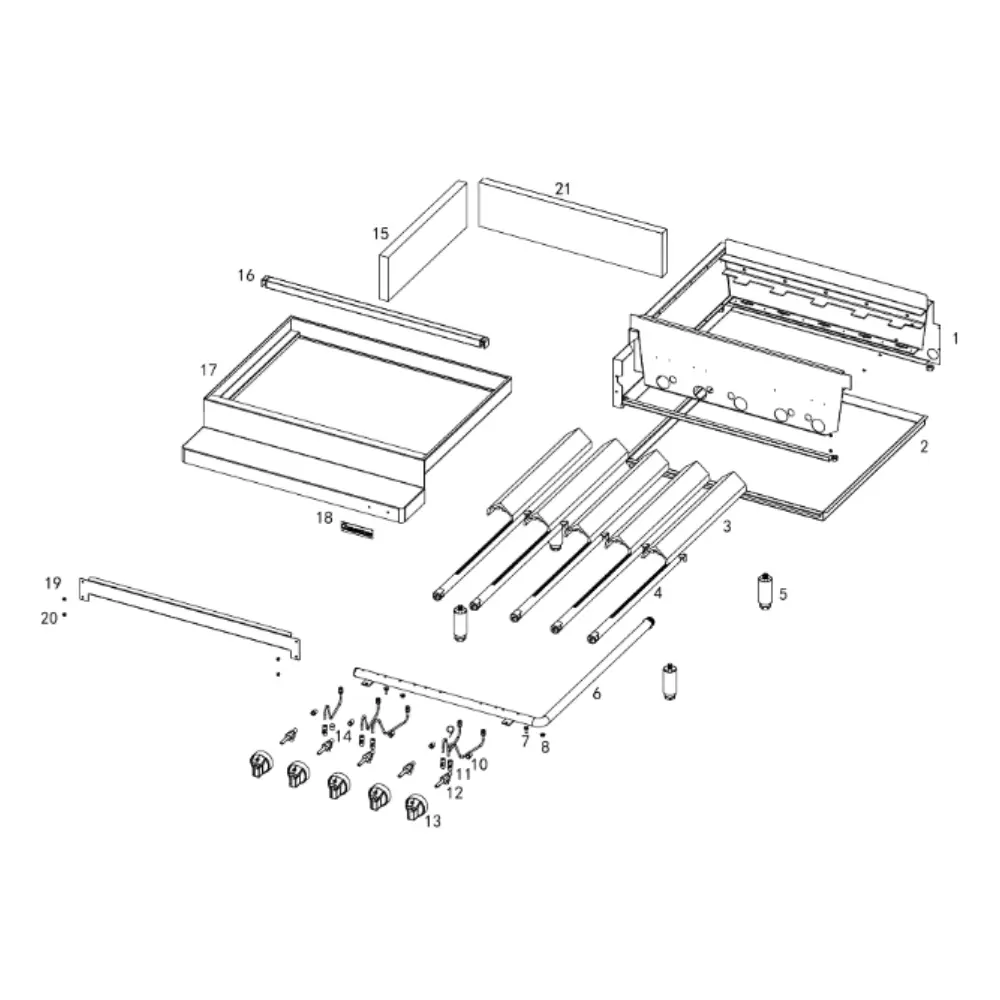

Order Parts
Place OrderPlace Order
#
Part Number
Part Name
Add/Remove
2
30-450-XX
Grease can
3
03-125-00
Cast Iron Burner Cover
4
30-150-00
CRB burner
5
A951-4
4" leg, adjustable
6
30-300-XX
Gas manifold pipe
7
S0202005020
Hexagon flange bolt, M6x16
8
S0202008008
Hexagon flange nut,M6
9
30-350-01
Pilot w/ tubing
10
30-200-01
Orifice nat-43 / lp-55
11
00-225-00
Pilot adjustment valve
12
00-250-00
Valve
13
00-500-00-C
Chromed knob
14
S027008048
Hexagon bolt, 1/8-27 NPT
16
KB-XX
Skewer Support
18
00-900-00-B
Connerton Logo
19
30-425-XX-KABOB
Front panel
20
S0202001063
M5x6, Cross half-round head screw
