CG-M 30 Inch Deep Cooking Surface
- Manual griddle, Seam weld on top & bottom
- 1” polished steel plate
- 30” deep cooking surface
- 30,000 BTU/burners
- Available options: Grooved or Chromed plate, stainless steel shelf
Specs
{acf_specs}
Body: 16 Gauge #304 Stainless Steel, Fully Welded
Plate: 1” Highly polished steel
Gutter: 14 Gauge #304 Stainless Steel
Burners: 30,000 BTU Tubular Aluminized Steel, U-Shaped
Drip Pan: 18 Gauge #304 Stainless Steel
Valves: Heavy Duty Brass
Gas Inlet: 3⁄4 NPT
Gas Pressure: 5.0” Natural, 10.0” Propane (Inches Water Column)
Legs (Floor Model): #304 Stainless Steel tubing with Stainless Steel undershelf and adjustable feet or castors

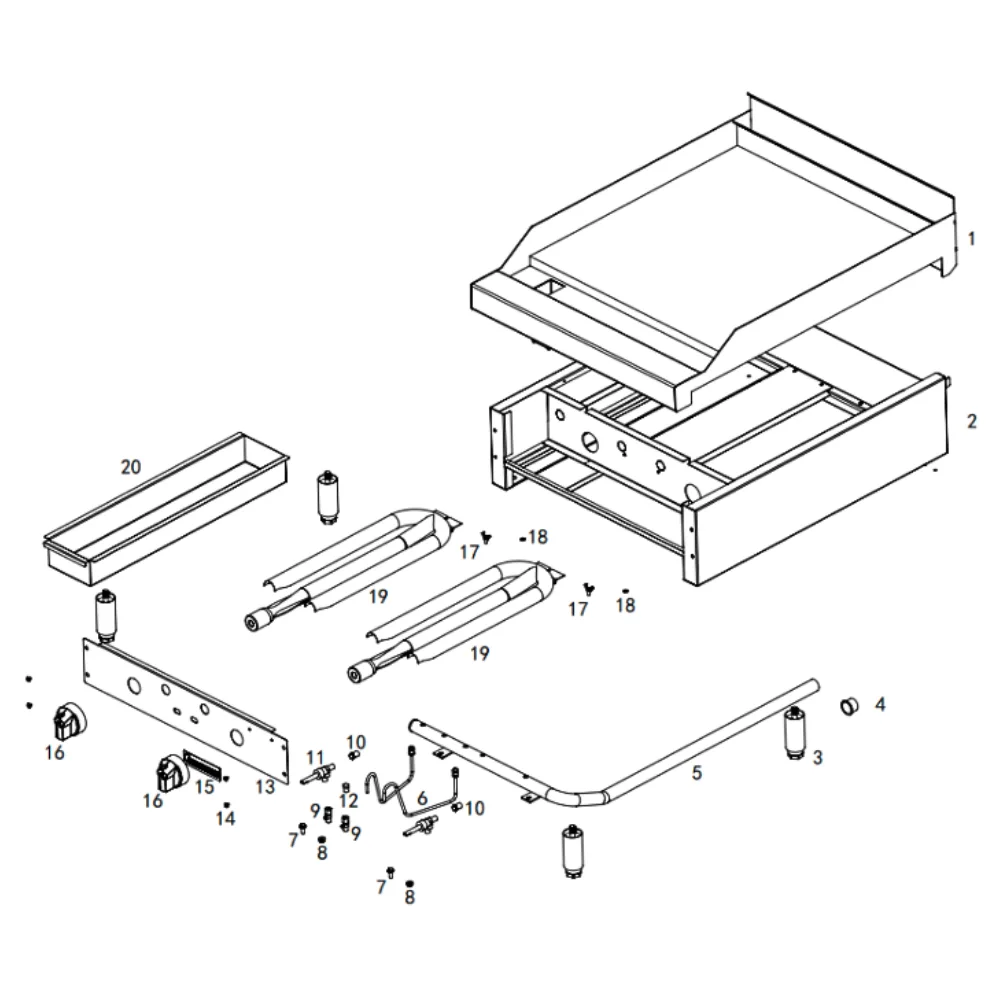

Parts Diagram
Order Parts
Place OrderPlace Order
#
Part Number
Part Name
Add/Remove
1
10-475-xx
griddle plate
2
10-400-xx
body
3
A951-4
4” Adjustable leg
4
10-300-C
Pipe Plugs
5
10-300-DS
gas manifold pipe
6
05-350-00
Pilot w/tubing
7
S0202005020
Hexagon flange bolt
8
S0202008008
Hexagon flange nut
9
00-225-00
Pilot adjustment valve
10
10-200-01
Orifice
11
00-250-00
Valve
12
S027008084
Hexagon bolt, 1/8-27 NPT
13
10-425-XX
Front Panel
14
S0202001063
Cross half-round head screw
15
00-900-00-B
Connerton Logo Small
16
00-500-00C
Chromed knob, zinc, w/logo
17
S0212016084
Butterfly bolt
18
S0202007004
Flat washer
19
10-150-00
CG Burner
20
10-450-00
Grease can
