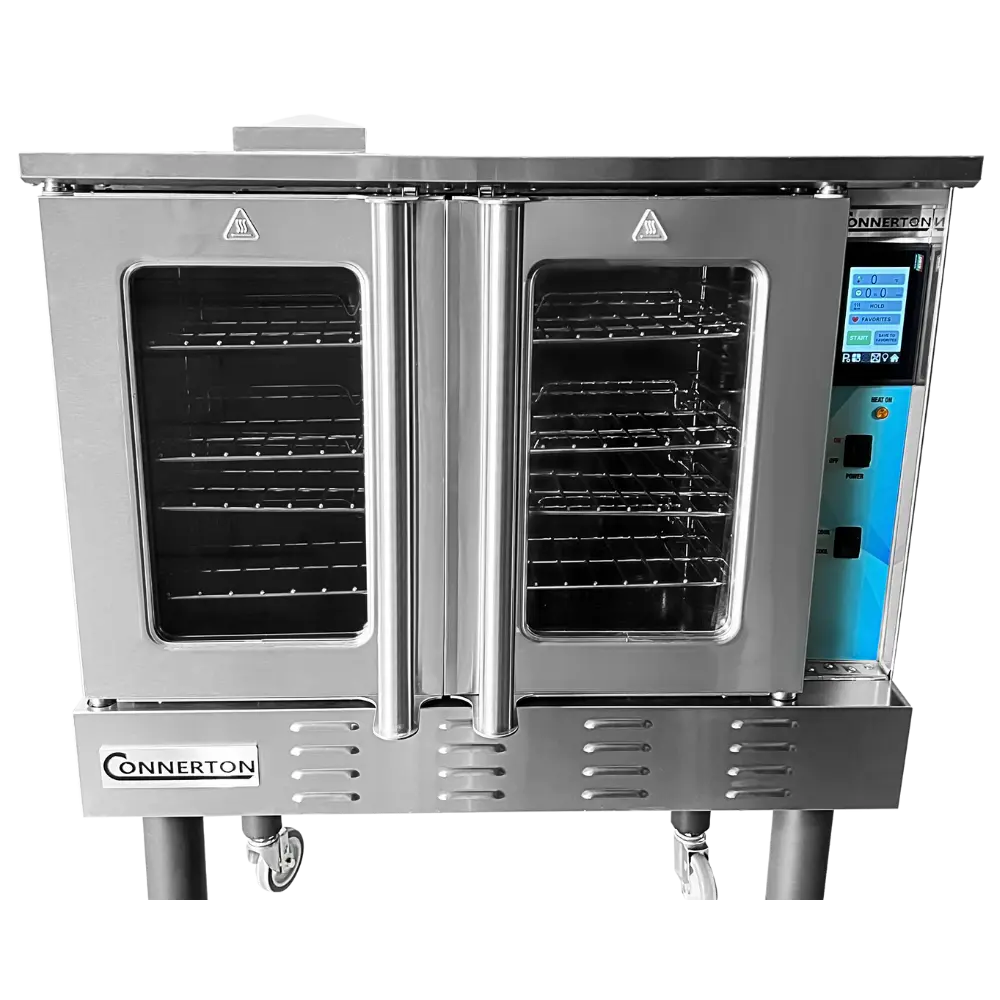

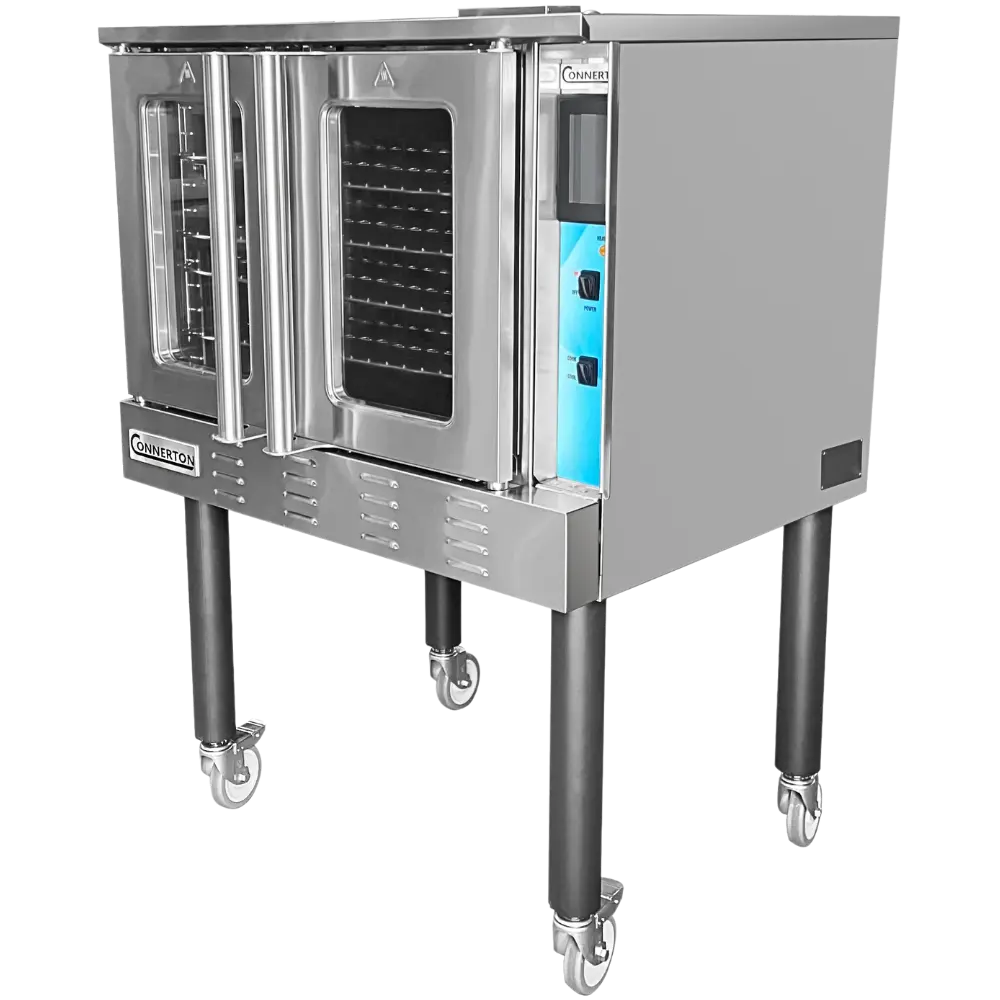

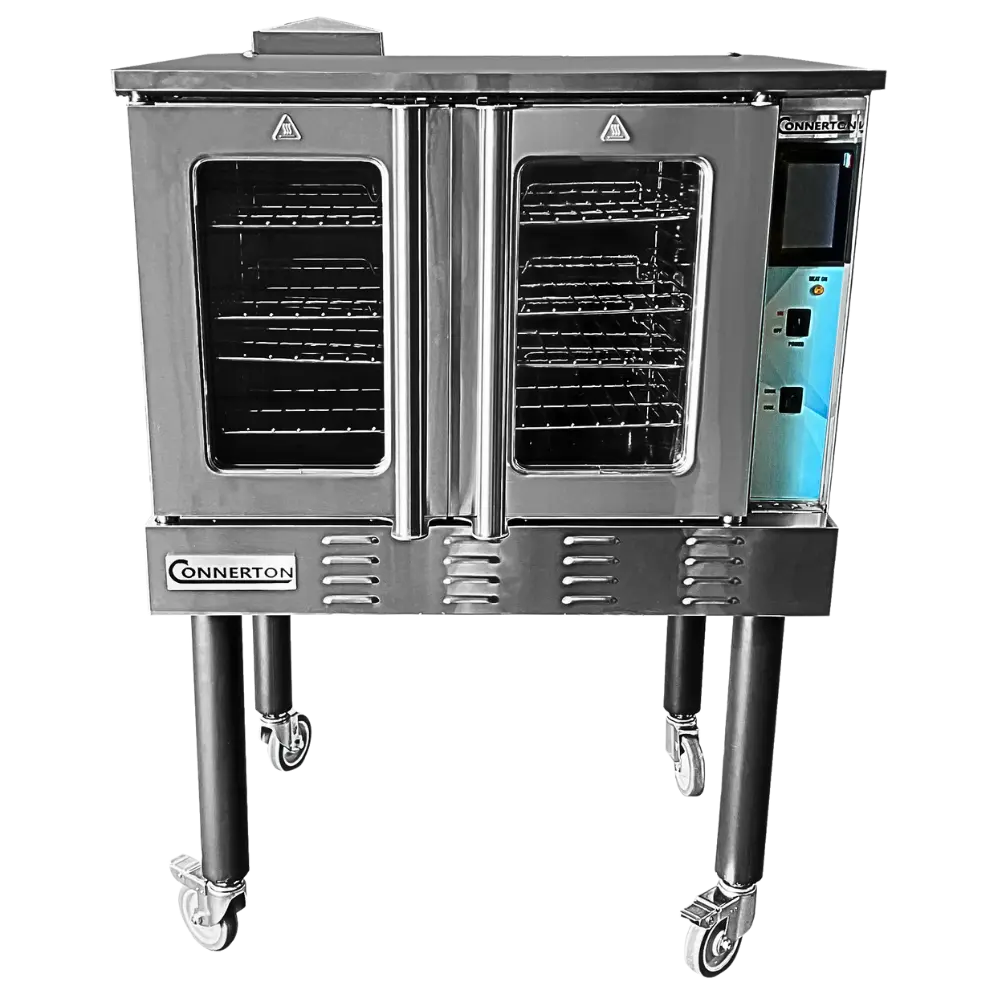

CNCGD Smart Touch Convection Oven
- Commercial gas convection oven with stainless steel construction and 1/2 HP two-speed blower
- Available with smart touch controls (150-500°F)
- Features double-pane windows, four nickel-plated racks, and porcelain enamel interior
- Dimensions: 38″W x 42″D x 57″H, operates on 120V/60Hz power
- Made in USA: Available as a Double Stack Convection Oven or Stacking kit
Specs
{acf_specs}
Stainless steel front, sides and top
Painted legs
Independently operated stainless steel doors with double pane windows
120V/60HZ, 1 ph power supply rewired

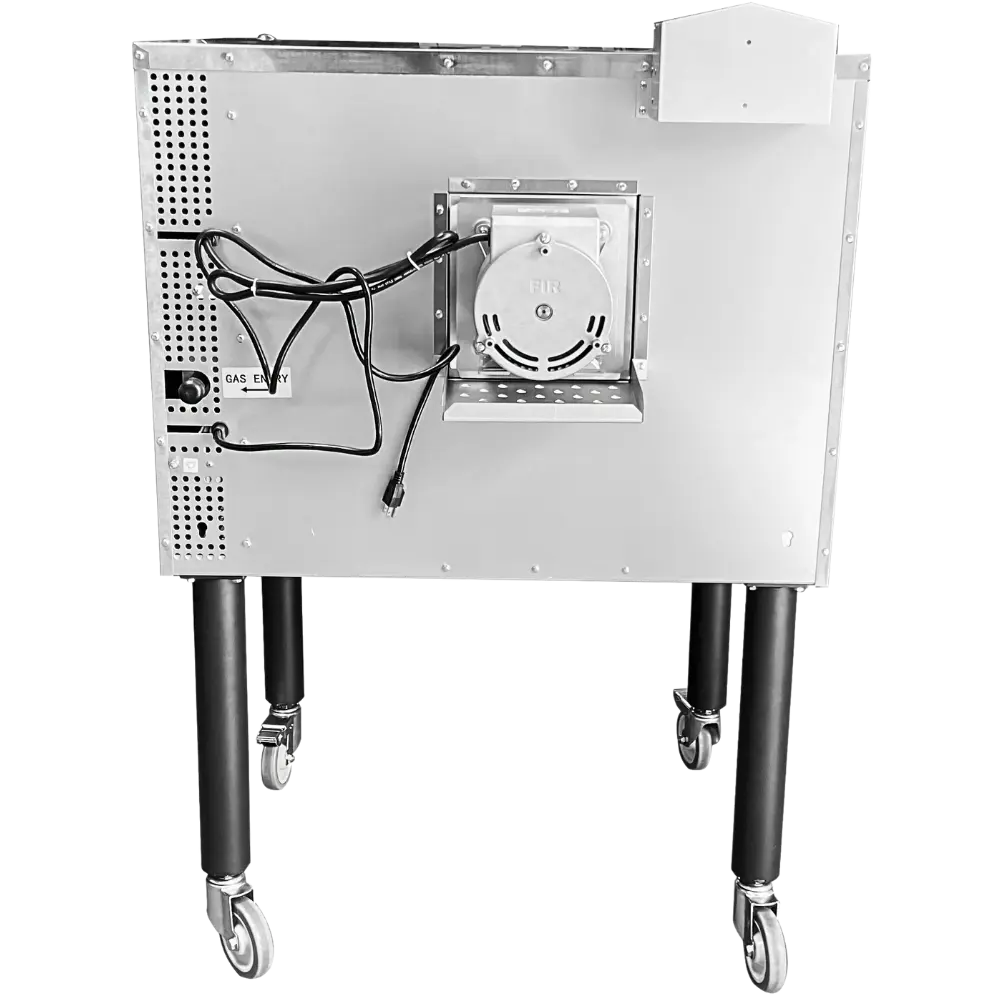

1/2 H.P. two speed oven blower-motor
Oven cool switch for rapid cool down
Porcelain enamel on steel oven interior

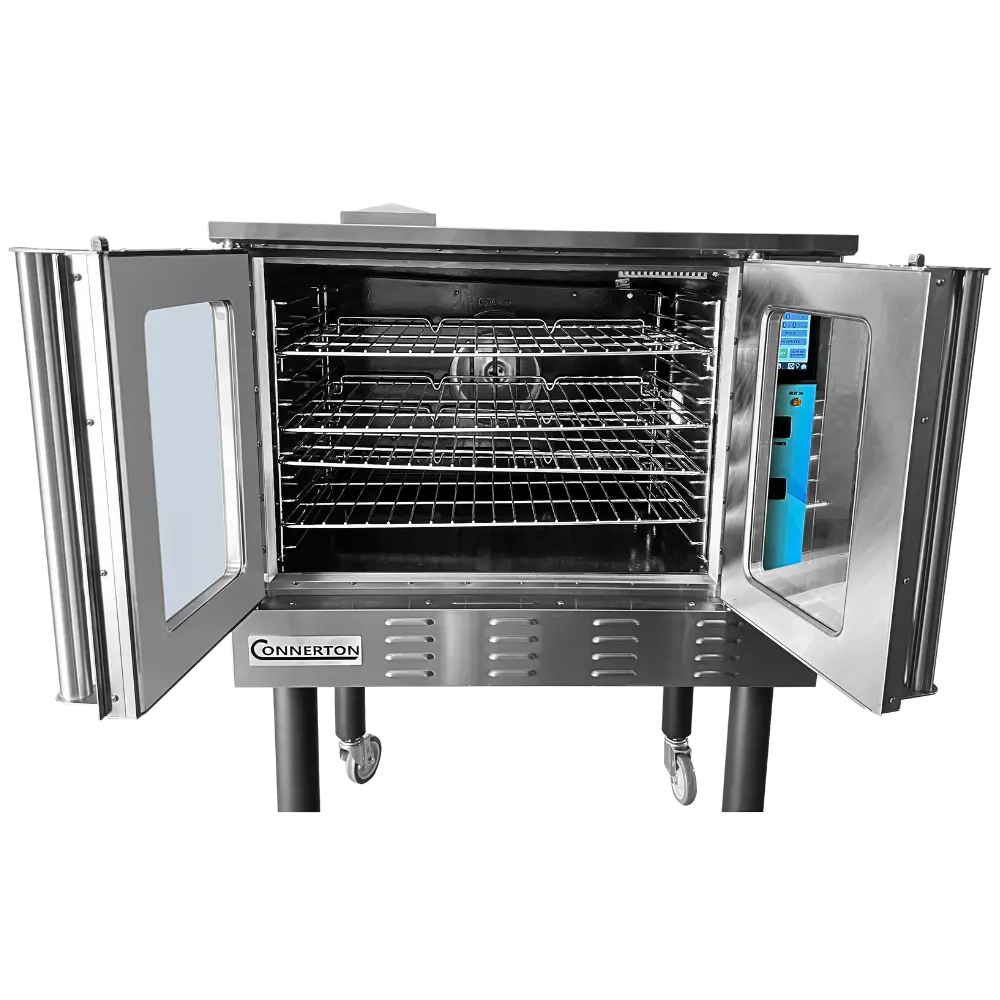

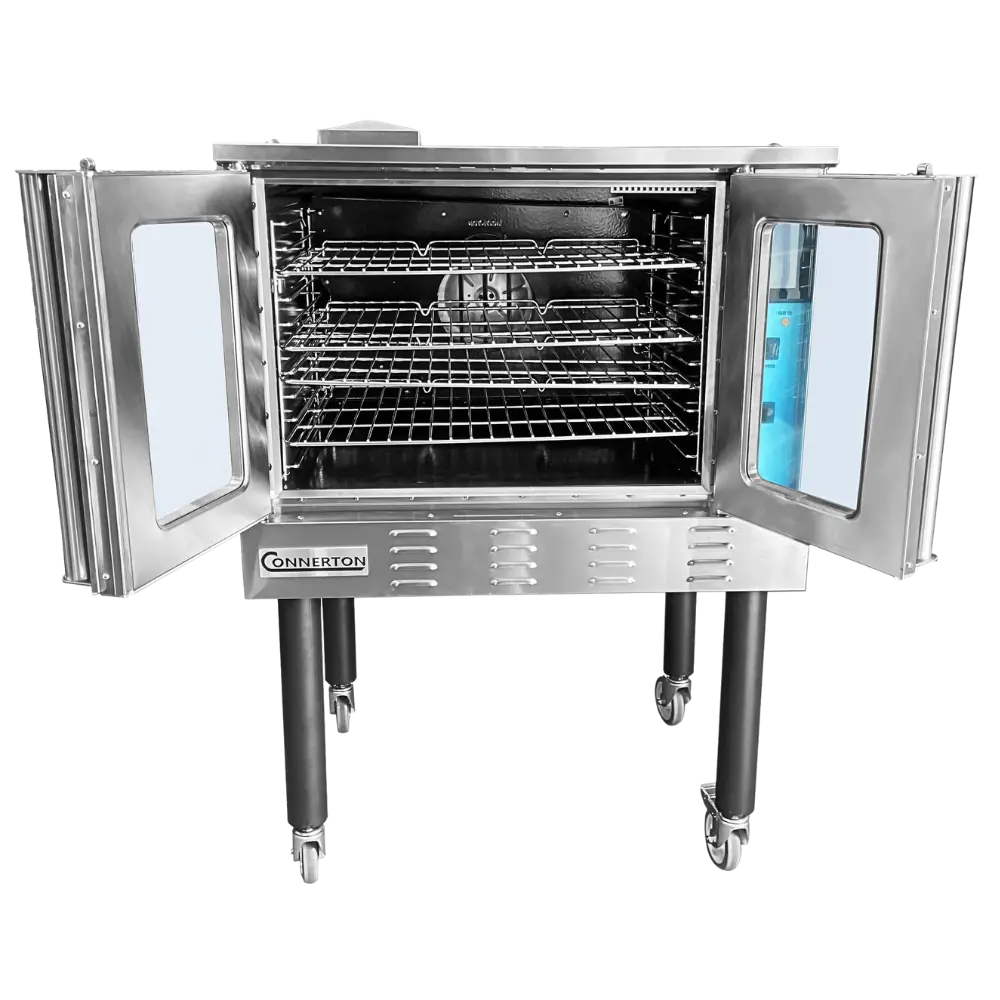

Four nickel plated oven racks with eleven rack positions
2-Year warranty: Covers parts and labor during the first year, and parts during the second year
Parts Diagram
Order Parts
Place OrderPlace Order
#
Part Number
Part Name
Add/Remove
1
FGC100-16-00
REAR FLUE assembly
2
FGC100-15-00
top cover assembly
3
FGC100-00-01
LEFT SIDE PANEL
4
FGC100-00-08
RACK
5
FGC100-00-07
RACK HOLDER
6
FGC100-30-00
CONVECTION/HOT AIR COMPARTMENT ASSEMBLY
7
FGC100-47-00
DOOR STOPPER ASSEMBLY
8
FGC100-40-03
DOOR SHAFT BUSH
9
FGC100-42-00
LEFT DOOR ASSEMBLY
10
FGC100-41-00
RIGHT DOOR ASSEMBLY
11
FGC100-00-03
LOWER FRONT COVER PLATE
12
"RL2(P)-22-0- BK/BK-P1 "
WATER-PROOF SWITCH
13
301120028
TIMER
14
FGC100-63-00
BURNER ASSEMBLY
15
301030169
THERMOSTAT
16
FGC100-20-00
CONTROL PANEL ASSEMBLY
17
302170039
HOT SURFACE IGNITER
18
301150304
IGNITION CONTROLLER
19
/
TERMINAL HOUSINNG PLUG
20
MICRO SWITCH
21
301100149
TRANSFORMER
22
FOOT
23
CASTER WITH BRAKE & Without break
24
302201872
NUT
25
302090088
LEG
26
301100086
BUZZER
27
STRAIGHT TUBE
28
302140077
CONNECTOR
29
302140080
NUT
30
302140079
HOOP
31
FGC100-62-01
MANIFOLD
32
301080079
TRAVEL SWITCH
33
NOZZLE
34
301130140
INDICATOR LIGHT
35
77.728.9154 (120V UL)
LAMP
36
FGC100-00-02
RIGHT SIDE PANEL
37
VALVE
38
302060152
ELBOW
39
302060040
CONNECTOR
40
302060046
CONNECTOR
41
BALL VALVE
42
302060151
ELBOW
43
FGC100-61-02
Intake pipe
44
TURBO FAN
45
FGC100-50-01
HEAT SHIELD ASSEMBLY
47
FGC100-50-09
MOUNTING CONTOUR POST
48
MOTOR
