CSG-F4 A
- 50 lb capacity stainless steel commercial fryer, made in USA
- 120,000 BTU output with Natural/LP gas compatibility
- Adjustable temperature control from 200-400°F
- Includes two wire mesh baskets and cool zone feature
- Compact design with full stainless steel construction
Specs
{acf_specs}
All stainless steel tank, door, front, Sides, top, ledge, and header
Easy to use thermostat for accurate and adjustable temperature between 200-400 degrees Fahrenheit
50 lb. fry pot, with an efficient 4 tube burner system, full port drain, and drain pipe extension
Two nickel chrome wire mesh fry baskets included
Natural gas, 120,000 BTU

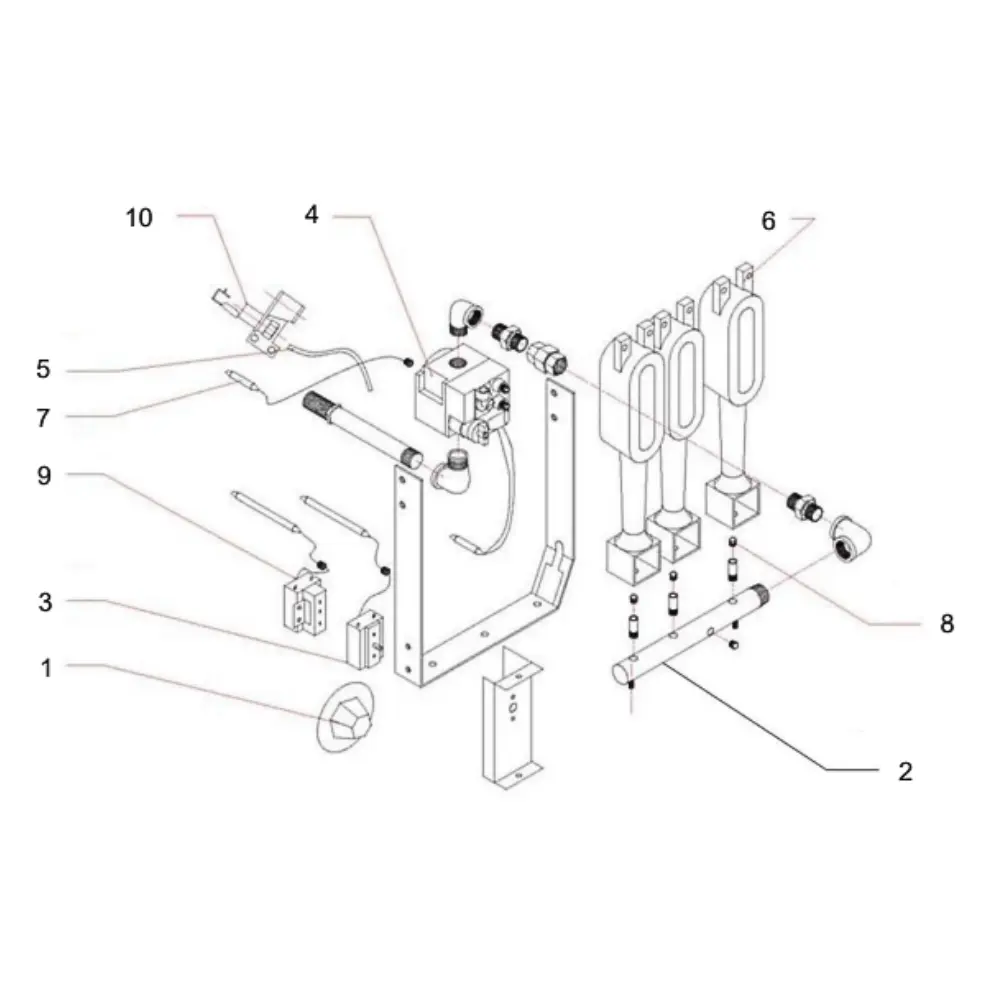

Parts Diagram
Order Parts
Place OrderPlace Order
#
Part Number
Part Name
Add/Remove
1
CSG-F4-LP.01A
Fryer frame and tank
2
CSG-F4A-NG-DT.01A
Fryer with shorter burner – Depper tant
3
CSG-F4A-NG.01A
Fryer frame and tank
4
CSG-01
Hi limit switch for fryer – Manual Reset, 450’ F
5
CSG-02
High limit switch for fryer-Auto reset . 450’ F
6
CSG-03
Millivolt combination gas valve for NG with flange fitting.
7
CSG-04
Electric Thermostat
8
CSG-05
Pilot assembly, fryer with Thermopile
9
CSG-06
Gas valve
10
CSG-07
Elbow 90 Degree
11
CSG-08
Coupler
12
CSG-09
Tubing flex
13
CSG-10
Knob, Thermostat
14
CSG-11
Gas Inlet pipe
15
CSG-12
Drain pipe
16
CSG-13
Baskets
17
CSG-14
Screen 13 ½” 13 ½”
18
CSG-15
Standard Casters
19
CSG-16
Locking Casters
20
CSG-17
Cast iron burners
21
CSG-18
Manifold
22
CSG-WR-1
Wiring harness
23
CSG-WR-2
Loose wire
