RLRB-L

  • Professional lava rock broiler available in multiple widths (12″ to 52″)
  • Features extended 18″ burners for superior heat distribution (28,000 BTU each)
  • Constructed with welded #304 stainless steel and removable firebox
  • Models range from 1 to 5 burners (28,000 to 140,000 total BTU)
  • Includes 21″ cooking depth with optional rolling rod grates

Specs

{acf_specs}

Body: 18 Gauge #304 Stainless Steel, Fully Welded

Fire Box: 16 Gauge #304 Stainless Steel, Welded to Body

Front: Removable 18 Gauge #304 Stainless Steel Panel

Top Grates: Heavy Duty Cast Iron, Adjustable Rear Height

Bottom Grate: Waffle Grate

Burners: 28,000 BTU Cast Iron, 18” Long

Drip Pan: 18 Gauge #304 Stainless Steel

Valves: Heavy Duty Brass

Gas Inlet: 3⁄4 NPT

Gas Pressure: 4.0” Natural, 11.0” Propane (Inches Water Column)

Legs (Floor Model): #304 Stainless Steel tubing with bullet, caster or seismic options

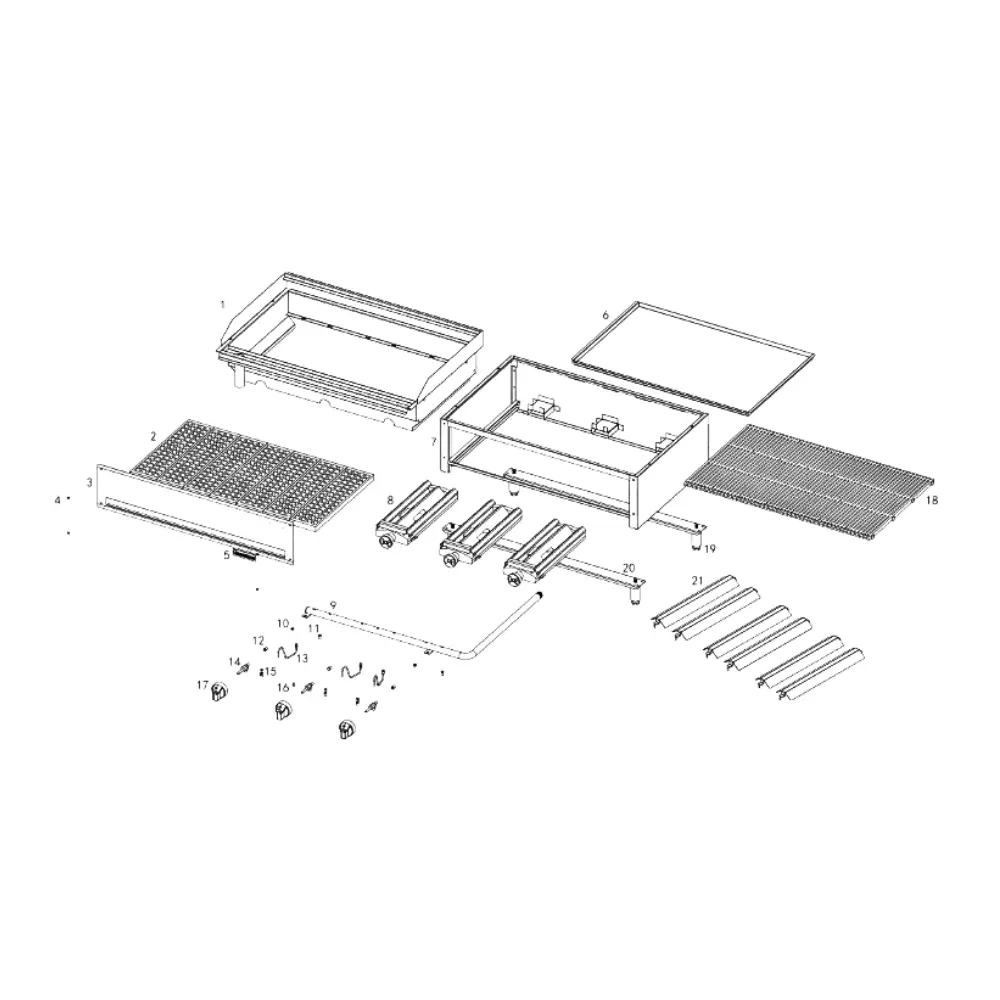

Parts Diagram

Click to expand the image

Order Parts

Place Order
#
Part Number
Part Name
Add/Remove
1
60-400-xx
Body
Add To Order List
2
60-475-xx
Firebox
Add To Order List
3
60-425-xx
Front Panel
Add To Order List
4
60-450-xx
Grease Pan
Add To Order List
5
60-100-02
Waffle Grate
Add To Order List
6
60-100-01
Top Grate
Add To Order List
7
60-150-00
Burner
Add To Order List
8
60-200-01
Orifice Hood - Natural
Add To Order List
60-200-02
Orifice Hood - Propane
Add To Order List
9
00-675-00
Air Shutter
Add To Order List
11
60-350-00
Pilot w/tubing
Add To Order List
12
60-300-xx
Gas Manifold
Add To Order List
13
00-225-00
Pilot Valve
Add To Order List
14
00-250-00
Manual Control Valve
Add To Order List
15
00-500-00
Chrome Knob
Add To Order List
16
00-275-01
Regulator - Natural
Add To Order List
00-275-02
Regulator - Propane
Add To Order List
17
00-175-00
Lava Rock
Add To Order List
