CHP

  • Heavy-duty commercial hot plates with 32,000 BTU per burner
  • Available in 15″ or 27″ depths with multiple width options (12″ to 48″)
  • Constructed with welded #304 stainless steel for durability
  • Models range from 1 to 8 burners (30,000 to 240,000 total BTU)
  • Multiple accessories available including griddles and wok adapters

Specs

{acf_specs}

18 Gauge #304 Stainless Steel, Fully Welded

Removable 18 Gauge #304 Stainless Steel Panel

Heavy Duty Painted Cast Iron w/ “Center-Slope” Hole

30,000 BTU Heavy Duty Painted Cast Iron

18 Gauge #304 Stainless Steel

Heavy Duty Brass

3⁄4 NPT

5.0” Natural, 11.0” Propane (Inches Water Column)

Stainless Steel tubing With casters, Bullet, or seismic options

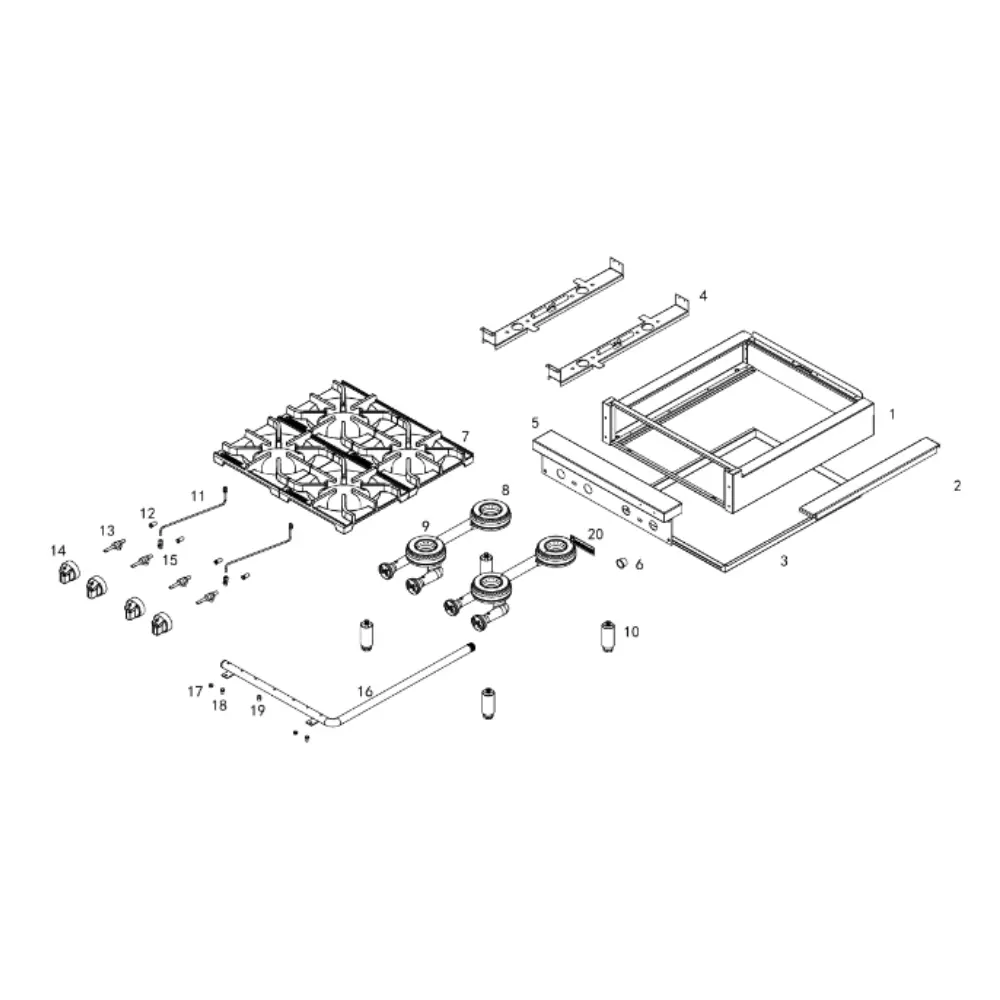

Parts Diagram

Click to expand the image

Order Parts

Place Order
#
Part Number
Part Name
Add/Remove
3
20-425-XXX-HD
Grease Can
Add To Order List
4
20-408-01
Burner Support
Add To Order List
5
20-425-XXX
Front panel, CHP-XXX-HD
Add To Order List
6
10-300-C
Pipe Plugs
Add To Order List
7
73-000-19-L
Hob
Add To Order List
8
73-800-00
Long Burner
Add To Order List
9
73-900-00
Short Burner
Add To Order List
10
A951-4
4" leg, adjustable
Add To Order List
11
20-350-01
Pilot w/ tubing
Add To Order List
12
20-200-01
Orifice nat-39/ lp-54
Add To Order List
13
00-250-00
Valve
Add To Order List
14
00-500-00-C
Chromed knob,zinc,W/LOGO
Add To Order List
15
00-225-00
pilot adjustment valve
Add To Order List
16
30-300-XXX
Gas manifold pipe,CHP- XXX-HD
Add To Order List
17
S0202008008
Hexagon flange nut,M6
Add To Order List
18
S0202005020
Hexagon flange bolt, M6x16
Add To Order List
19
S027008048
Hexagon bolt, 1/8-27 NPT
Add To Order List
20
00-900-00-B
Connerton Logo
Add To Order List
