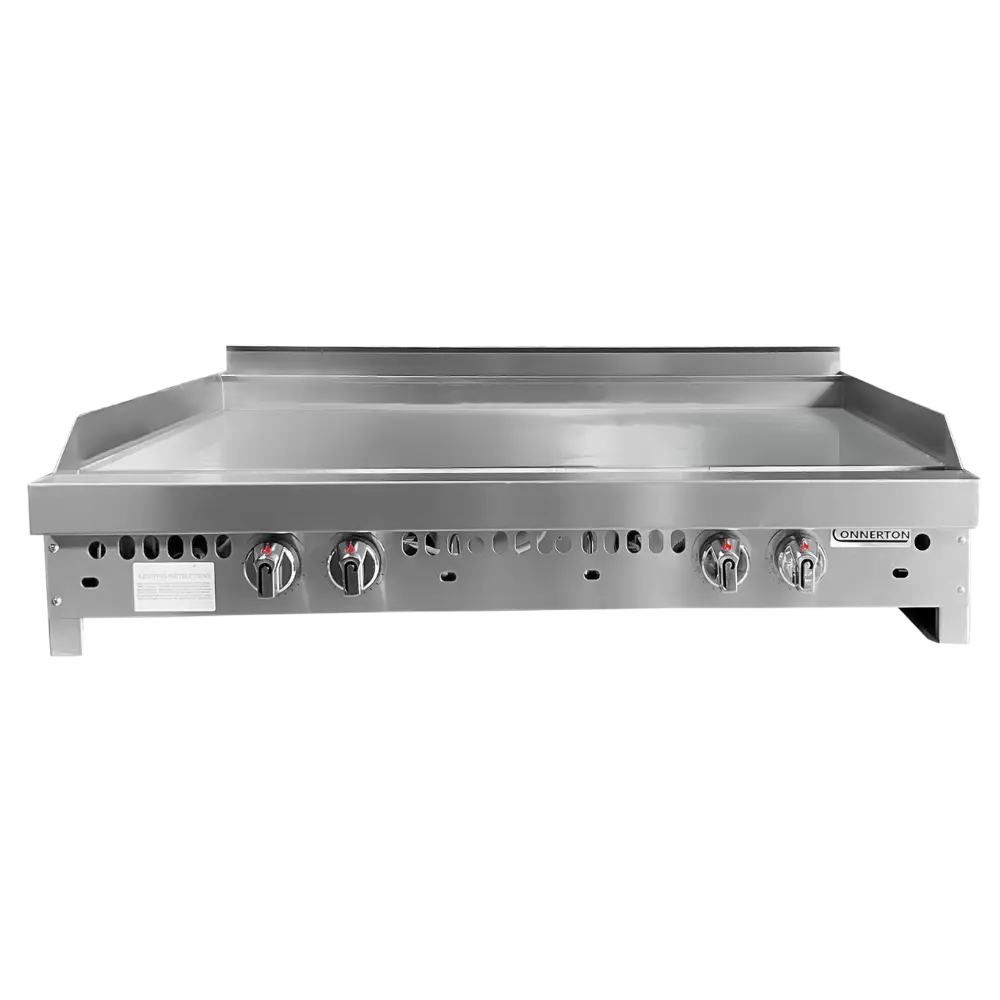

CG-T 30 Inch Deep Cooking Surface
- Thermostatic griddle, Seam weld on top & bottom
- 1” polished plate for fast, even heating
- 30” deep cooking surface
- 30,000 BTU U-shaped burners
- Integrated fire box & flue for efficiency
- Available options: Grooved or Chromed plate, shelf, 30″ deep cooking surface
Specs
{acf_specs}
Body: 16 Gauge #304 Stainless Steel, Fully Welded
Plate: 1” Highly polished steel
Gutter: 14 Gauge #304 Stainless Steel
Burners: 30,000 BTU Tubular Aluminized Steel, U-Shaped
Drip Pan: 18 Gauge #304 Stainless Steel
Valves: Heavy Duty Brass
Gas Inlet: 3⁄4 NPT
Gas Pressure: 5.0” Natural, 10.0” Propane (Inches Water Column)
Legs (Floor Model): #304 Stainless Steel tubing with Stainless Steel undershelf and adjustable feet or castors

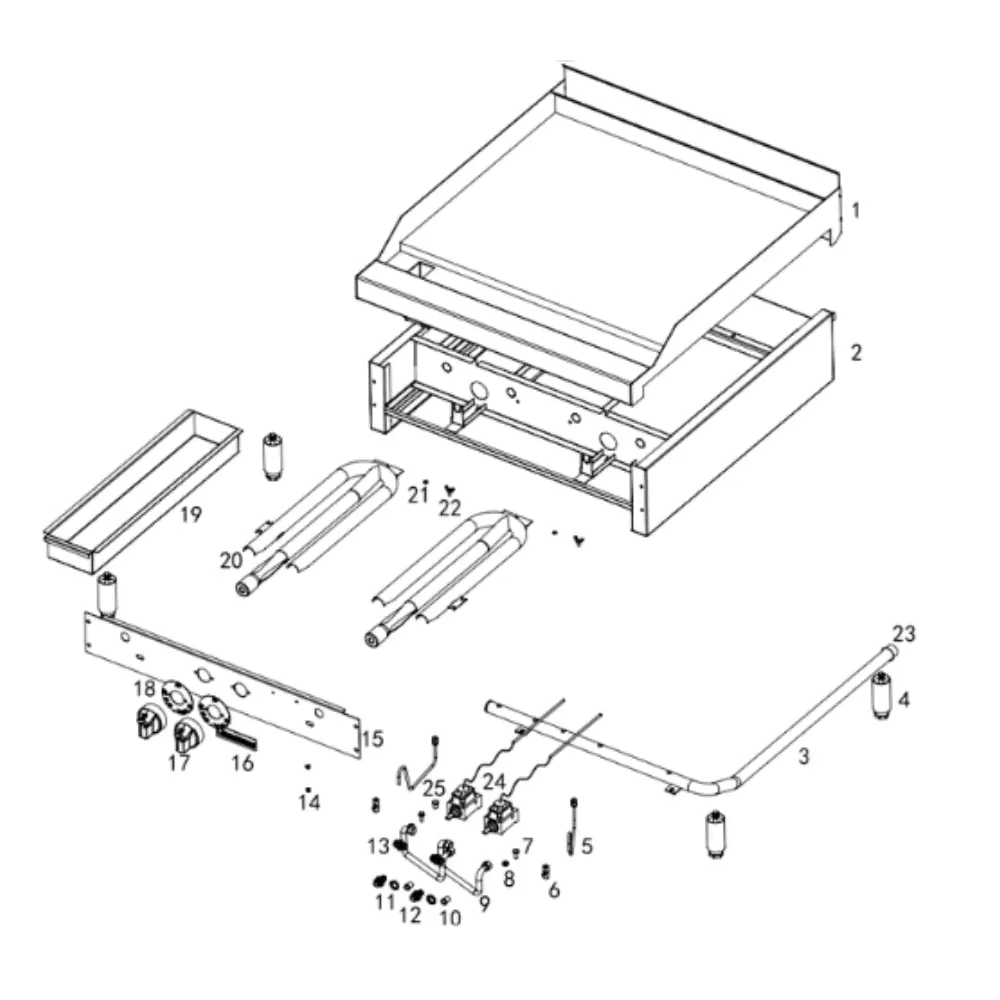

Parts Diagram
Order Parts
Place OrderPlace Order
#
Part Number
Part Name
Add/Remove
1
10-476-XX
griddle plate
2
10-400-DS
body
3
10-300-XXT4-P
Gas manifold pipe
4
A951-4
4” adjustable legs
5
05-350-00
Pilot w/tubing
6
00-225-00
Pilot adjustment valve
7
S0202005020
Hexagon flange bolt
8
S0202008008
Hexagon flange nut
9
05-550-00-4
Flex hose, 12”, with copper nuts
10
10-200-01
Orifice
11
05-550-00-6
Orifice Niple, brass
12
05-550-00-6
Copper nut, brass5/8-18
13
05-550-00-2
Thermostat valve nipple, brass
14
S0202001063
Cross half-round head screw
15
10-426-xx
Front Panel
16
00-900-00-C
Connerton logo, Small
17
00-500-00-C
Chromed knob/w/logo
18
00-550-00-7
Graduated Dial
19
10-450-00
Grease can
20
10-150-00
CG Burner
21
S0202007004
Flat washer, M6
22
S02012016084
Butterfly bolt
23
10-300-C
Pipe plugs
24
05-550-00
Thermostat valve
25
S027008084
Hexagon bolt, 1/8-27 NPT
